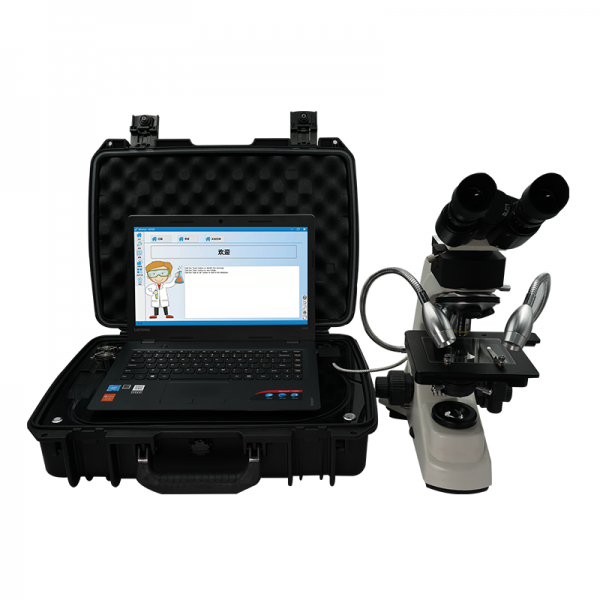

Raman Microscope
-
●532nm excitation light, CCD photodetector, grating spectroscopy
●Non-contact Raman spectroscopy measurement and analysis
●Excellent stability
● <0.1nm FWHM
●Optical probe acquires the Raman light of the substance with high excitation laser coupling efficiency and signal-to-noise ratio
●Built-in rechargeable lithium battery, can last up to 5-hours for field measurement
●Easy to carry and easy to use
●Software has functions of laser control, Raman spectroscopy, database management, analyzing substance and log (recording the experiment content in time
-
●532nm excitation light, CCD photodetector, grating spectroscopy
●Non-contact Raman spectroscopy measurement and analysis
●Excellent stability
● <0.1nm FWHM
●Optical probe acquires the Raman light of the substance with high excitation laser coupling efficiency and signal-to-noise ratio
●Built-in rechargeable lithium battery, can last up to 5-hours for field measurement
●Easy to carry and easy to use
●Software has functions of laser control, Raman spectroscopy, database management, analyzing substance and log (recording the experiment content in time
-
Items Specifications Remarks Excitation Wavelength 532nm Raman Probe Laser Power 0-50mW/0-40mW (after microscope objective lens ) Working Distance of Raman Focus Focal length of the objective lens Optional upon request Raman Spectrum 200-4000cm-1 Spectral Resolution 15cm-1@1000.7cm-1 Benzonitrile Stray Light 0.29% @532nm Light Detector High end detector Cooled CMOS optional upon request Pixel Number 2048 Pixel Size 14μmx200μm SNR 300:1@1000.7cm-1 Benzonitrile Cooled light detector ADC Resolution 16 bits Integration Time 1ms-15min Power Supply DC12V/5A (Raman spectrometer) Probe Fiber 1M armed Dimensions 508mmx373mmx147mm Weight 6Kg (Raman spectrometer), 5Kg (Microscope) Operating Temperature 0-45C° Storage Temperature -10-55C°
-
●Security: explosive, poisons, dangerous goods, illicit drugs, biochemical analysis
●Civil life: food, drug identification
●Identification of jewelry/heritage: jewelry identification, artifacts or nature, place of origin and age
●Medical applications: DNA, human metabolites (blood, urine etc.) and cancer cells identification
●Geology: field prospecting, mineral composition qualitative analysis and inclusion studies
●R & D in science and technology
●Customization
