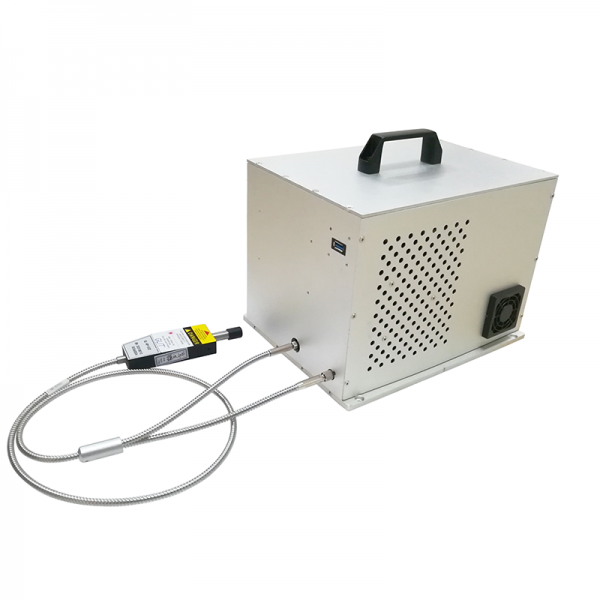

Portable Raman Spectrometers
-
●785/532nm excitation laser, CCD photo detector, grating spectroscopy
●Non-contact Raman spectral measurement and analysis
●User friendly mechanical interface, electronic interface and software interface
●0.1nm/<0.1nm FWHM
●Excellent stability
●Optical probe acquires Raman light of the substance with high excitation laser coupling efficiency and signal-to-noise ratio
●Can be used with other analytical instruments
●Software has the functions of laser control, Raman spectroscopy, database management, background substance and log (recording the experiment content in time) etc.
●Camera for video recording
-
●785/532nm excitation laser, CCD photo detector, grating spectroscopy
●Non-contact Raman spectral measurement and analysis
●User friendly mechanical interface, electronic interface and software interface
●0.1nm/<0.1nm FWHM
●Excellent stability
●Optical probe acquires Raman light of the substance with high excitation laser coupling efficiency and signal-to-noise ratio
●Can be used with other analytical instruments
●Software has the functions of laser control, Raman spectroscopy, database management, background substance and log (recording the experiment content in time) etc.
●Camera for video recording
-
Items Specifications Remarks Excitation Wavelength 785nm/532nm Raman Probe Laser Power 0-300 mw/0-80mW Working Distance of Raman Probe ~4mm (Default) Optional upon request Raman Spectrum 200-2800cm-1/200-4000cm-1 Depending on filters Spectral Resolution href="mailto:15cm-1@1000.7cm-1" 8cm-1@Hg 912nm/15cm-1@1000.7cm-1 Benzonitrile Stray Light 0.31% @785nm/0.002% @850nm Light Detector High end detector Cooled CCD or CMOS optional upon request Pixel Number 2048 Pixel Size 14μmx200μm SNR 300:1@1000.7cm-1Benzonitrile/
400:1@1000.7cm-1 BenzonitrileCooled light detector ADC Resolution 16 bits Integration Time 1ms-15min Power Supply DC12V/5A Probe Fiber 1M armed Dimensions 508mmx373mmx147mm Weight ~ 3Kg Operating Temperature 0-45C° Storage Temperature -10-55C°
-
●Easy to carry and use.
●Security: poisons, dangerous/explosive goods, illicit drugs, biochemical analysis
●Civil life: food, drug identification
●Identification of jewelry/heritage: jewelry identification, artifacts or nature, place of origin and age
●Medical applications: DNA, human metabolites (blood, urine, etc.) and cancer cells identification
●Geology: field prospecting, mineral composition qualitative analysis and inclusion studies
●R & D in science and technology
●Customization
